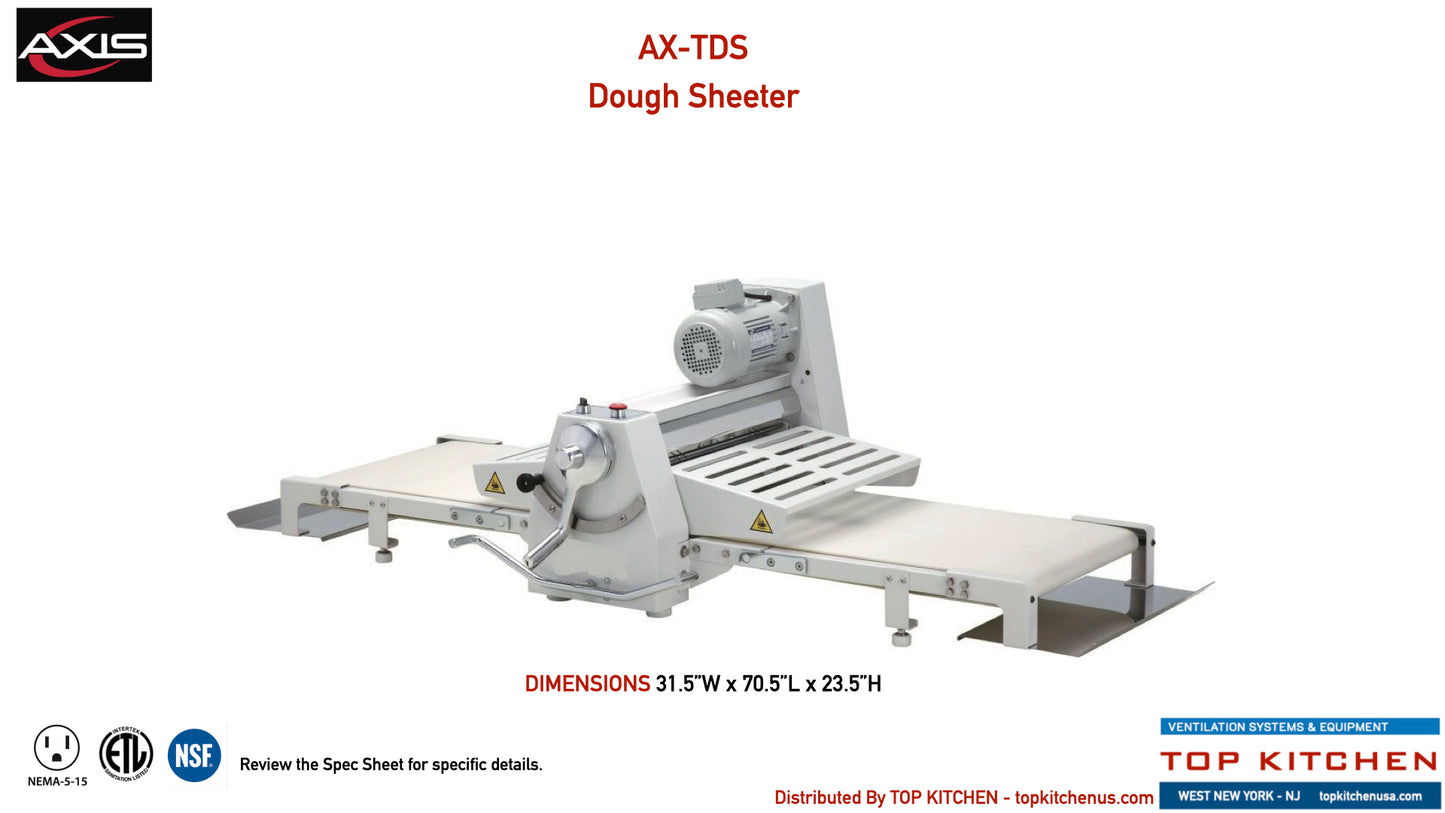

AXIS Dough Sheeter - Model AX-TDS

Features

Axis Dough Sheeter AX-TDS, is the most widely used reversible sheeter, designed according to the Baking Industry Sanitation Standards. Suitable for sheeting and stretching puff pastry, danish bread, donut, croissant, pie, cookie, strudel and pizza dough with an adjustable thickness between 3mm to 50 mm. The roller speed nears approximate 540mm per second. Automatic overload protective to prevent motor from damage. Both side conveyor tables folds up.

Heavy duty steel base. Powerful enclosure ventilated motor. Limit switch with magnetic type with overload protection mounted.

Not suited for Residential Use. Axis won't honor warranties for Residential Use. For complete Specifications and to find out whether this Dough Sheeter has Extra and/or Optional Accessories, Sold Separately, please review the Spec Sheet attached below. To be sure how to install and use the Dough Sheeter, please refer to the Installation and User Manual.

Ships Free 4-5 working days after order has been placed.

Certification ETL-Sanitation NSF

Weight 320 Lbs

Electrical 1/2 HP 110v/60/1-Ph. 7 AMPS NEMA 5-15

Dimensions

Width 31.5" x Length 70.5" x Height 23.5"

Belt Size 16.5" x 66.5"

Manual View

Spec Sheet View

Manufacturer Warranty View
